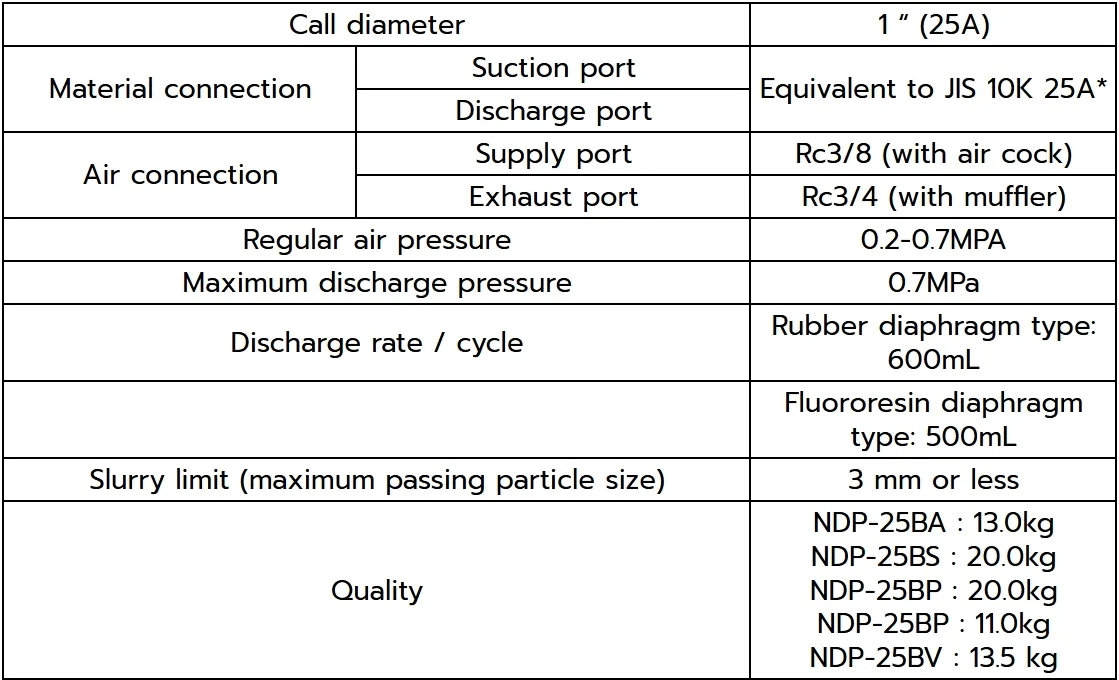

Specification
*The diameter of the screw type is Rc1.
*For BA BS and BF types, the material connection is screw connection and the size is Rc1.

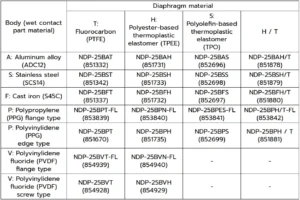

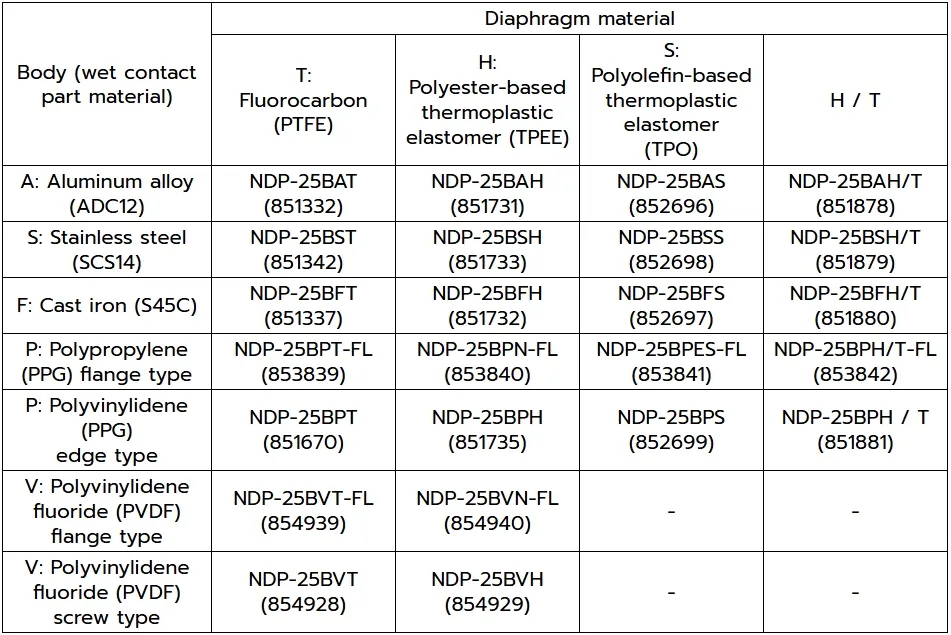

Note:) H/T is diaphragm: polyester-based thermoplastic elastomer (TPEE)
*FL is a flange (jis10K25A equivalent) material connection specification.

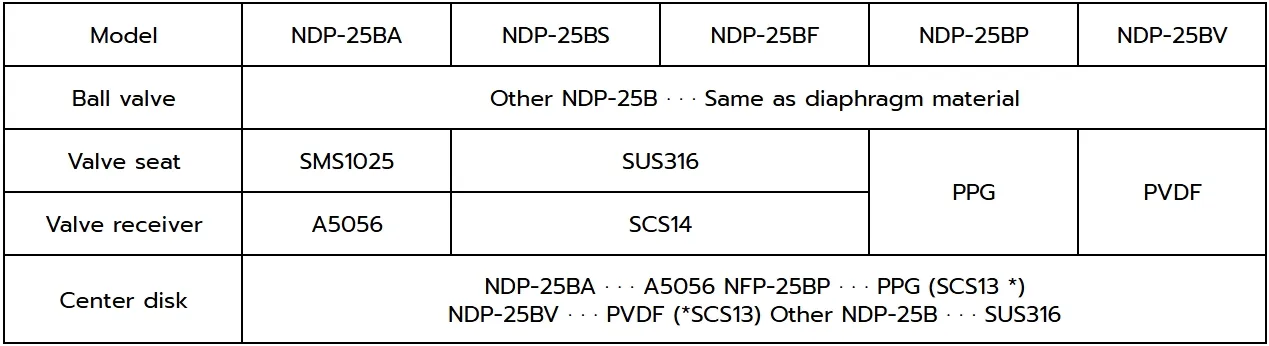

Main material quality
*SUS13 is the insert material
- The initial self-priming head is NDP-25B T · · · 2m Other NDP-25B · · · 5m.
