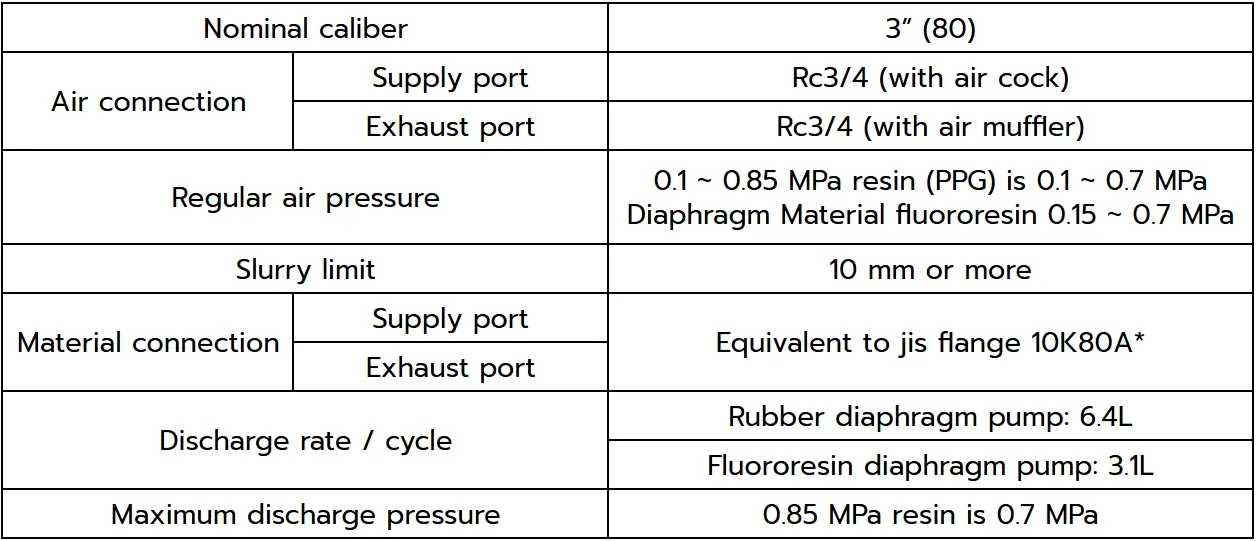

Specifications Caliber 3” (80A) Maximum discharge rate approx. 600 L/min
*Cast iron (FC250) NDP-H80BF series has screw specifications for material connection, and the size is Rc3.

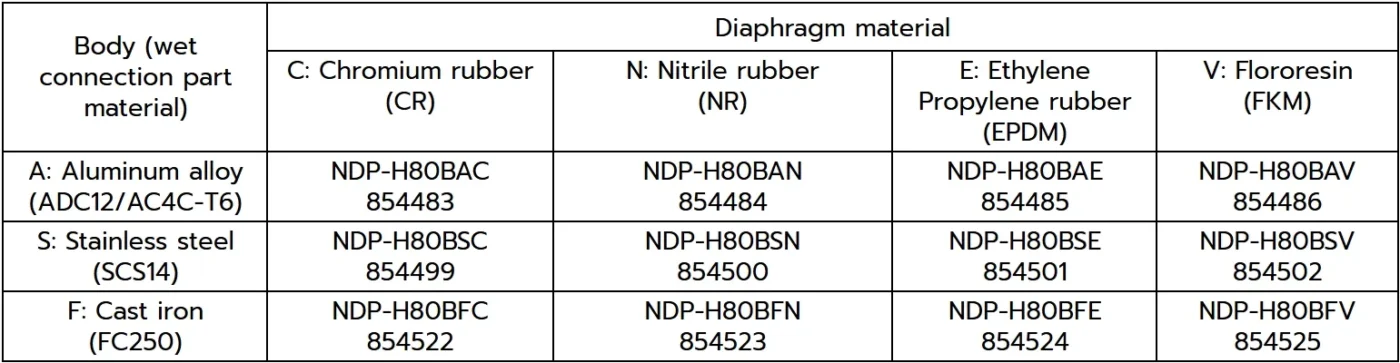

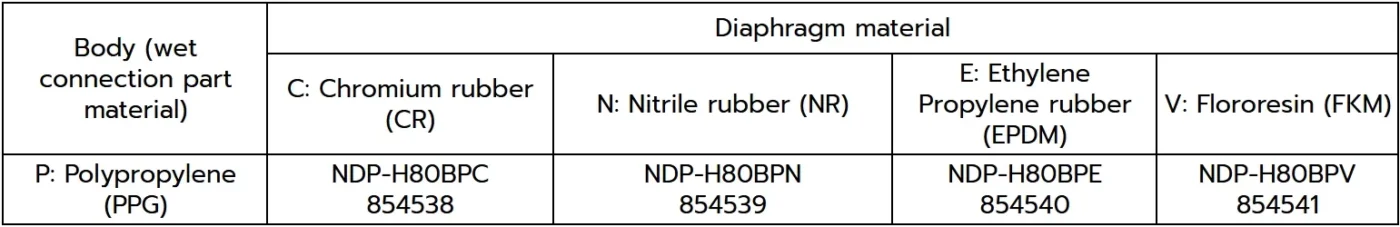

Parts list
*H/T is Diaframe: Polyester-based thermoplastic elastomer (TPEE), Ball: Fluororesin (PTFE)
*H/T is Diaframe: Polyester-based thermoplastic elastomer (TPEE), Ball: Fluororesin (PTFE)
*SCS13 is an insert material
*Liquid temperature is diaphragm material
NBR / CR: 0 to 70°C
TPEE / EPDM: 0 to 80°C
FKM / TPO / PTFE: 0 to 100°C
*Liquid temperature is diaphragm material
NBR / CR: 0 to 70°C
TPEE / EPDM: 0 to 80°C
FKM / TPO / PTFE: 0 to 100°C
- Initial self-priming head is NDP-H80B T · 3m Other NDP-H80B · 5m
