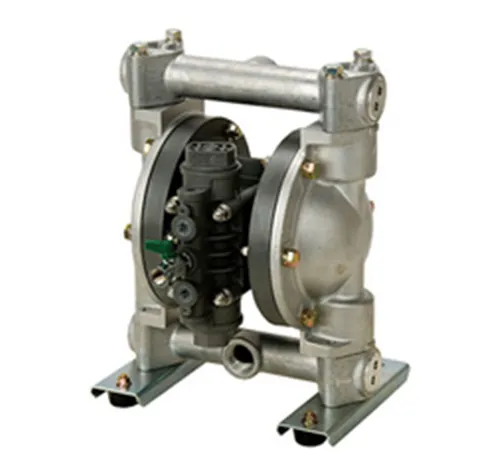

NDP-P25 High corrosion resistance diaphragm pump series

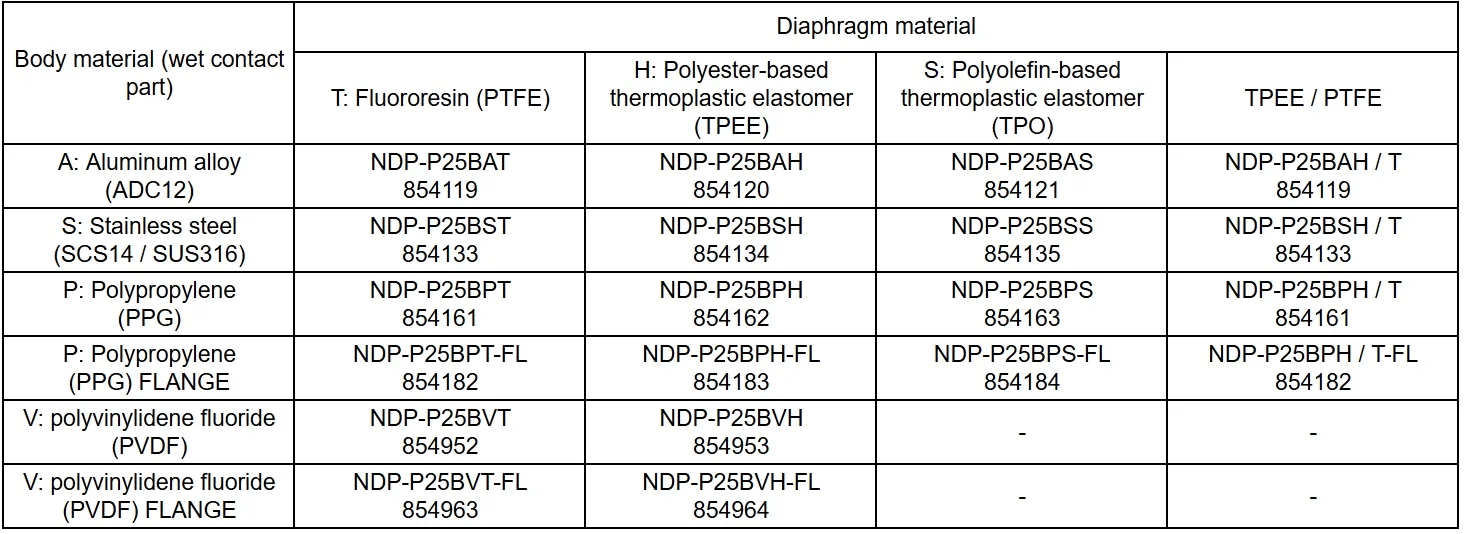

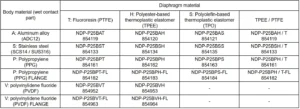

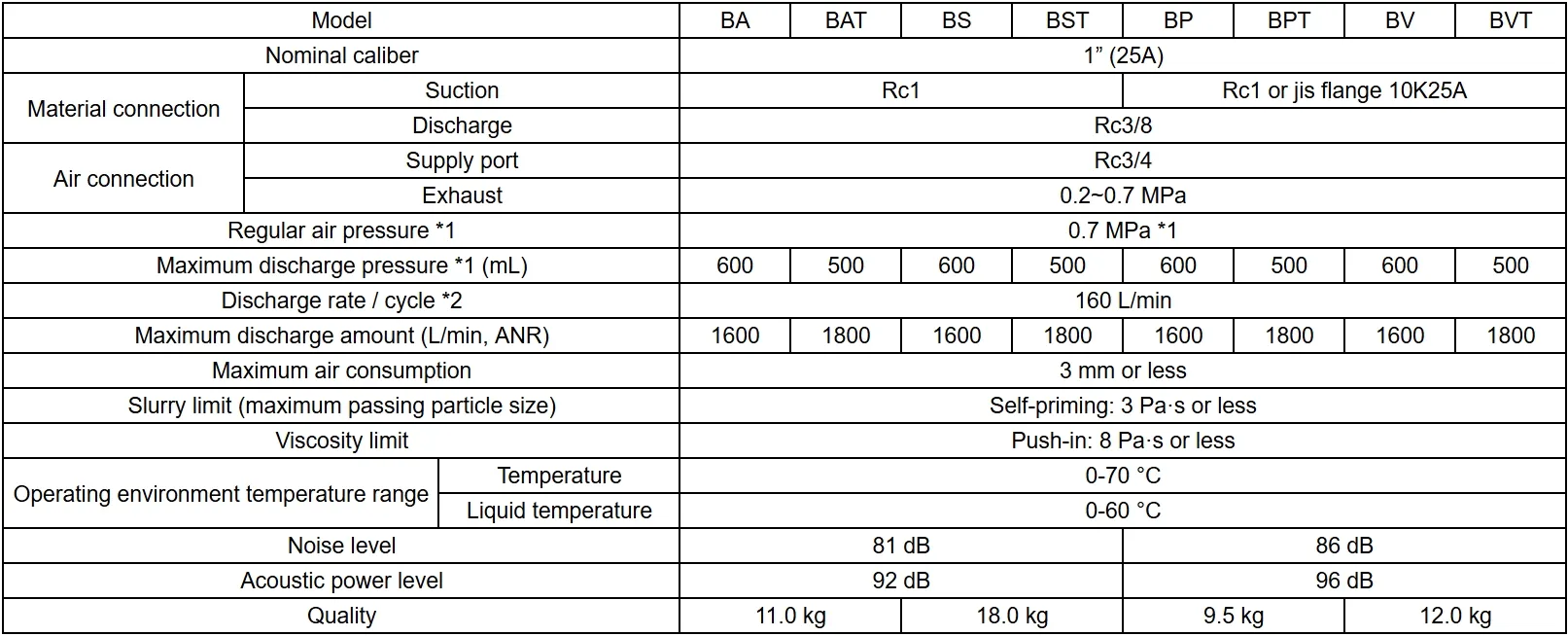

Pump variation NDP-P25 series
Note) Click the model / product number to display the parts list / parts exploded view.

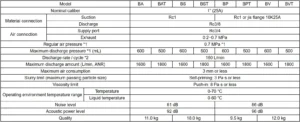

*1 Refer to the liquid temperature-maximum temperature operating pressure diagram
*2 Depending on the operating conditions

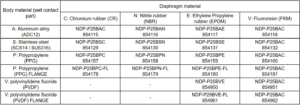

Main material quality

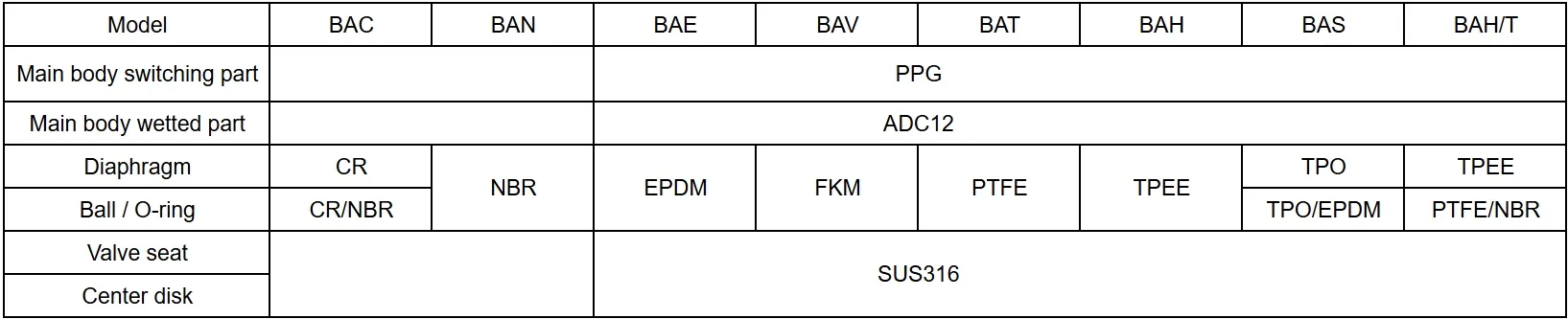

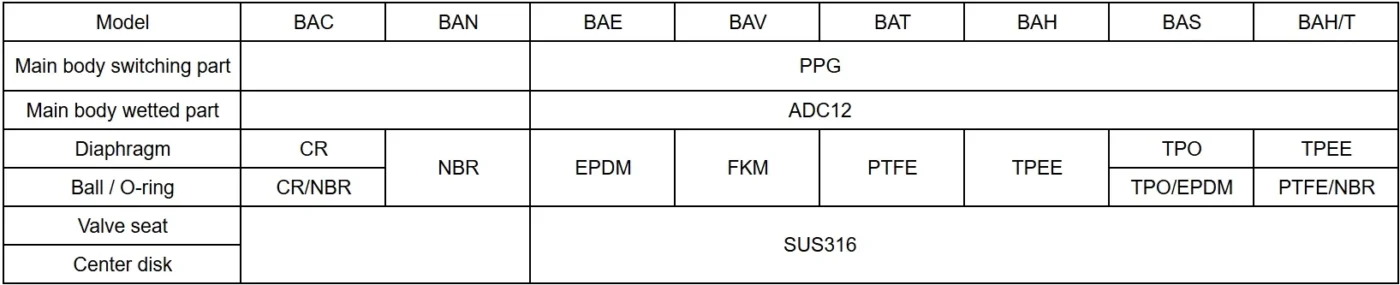

Aluminum series

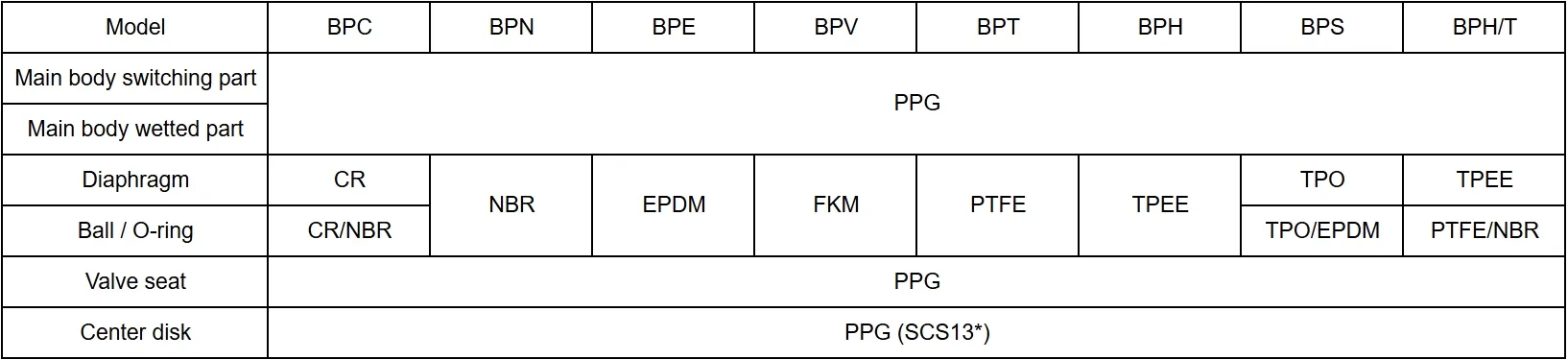

Polypropylene series
*SCS13 is an insert material

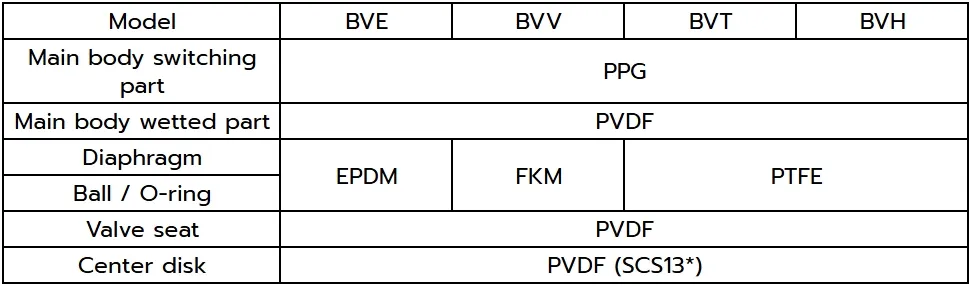

Fluororesin (PVDF) series
*SCS13 is an insert material
